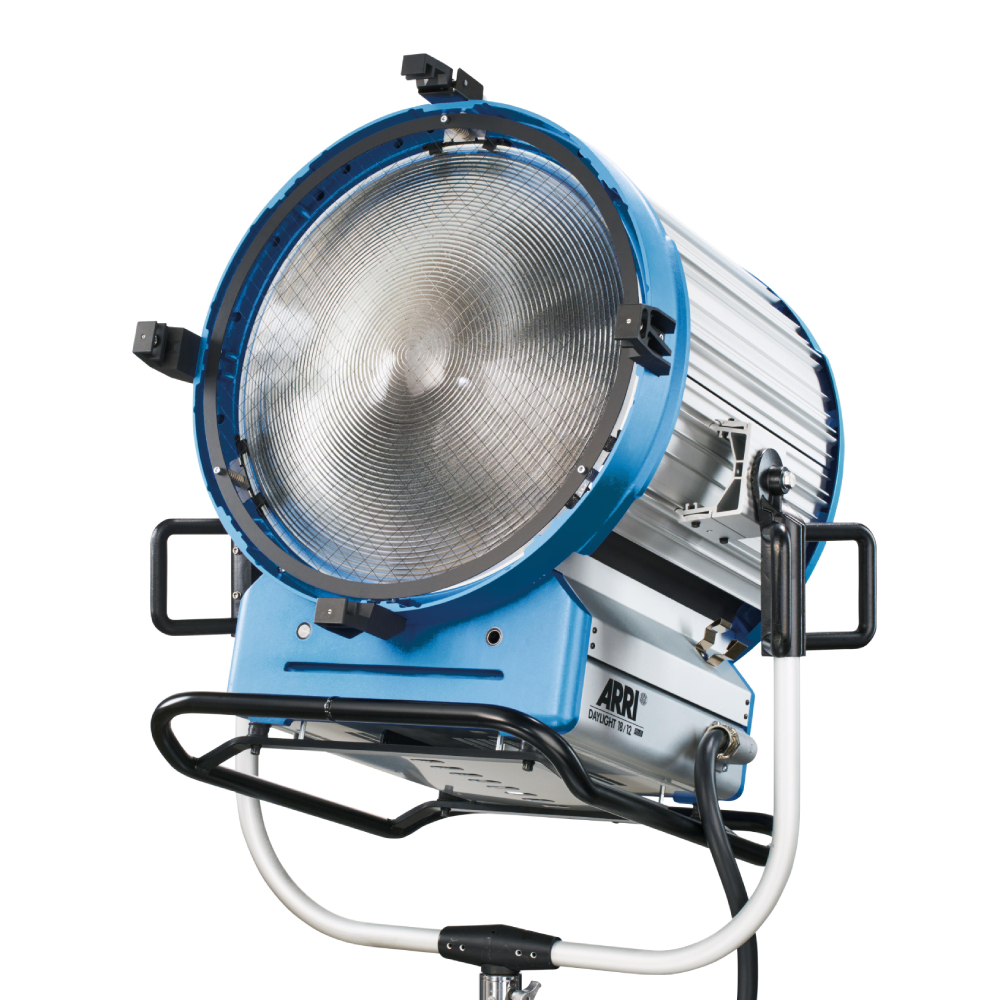

The ARRI 18/12 Fresnel is a high-output daylight fixture designed for large-scale productions. Switchable between 18,000 W and 12,000 W, it delivers powerful, natural 5600 K light with precise beam control from a tight spot to a wide flood. Ideal for simulating sunlight, punching through windows, or lighting wide areas on set. Rugged ARRI construction ensures reliability in demanding conditions.
-
Lamp Type: 18,000 W or 12,000 W single-ended HMI (switchable)
-
Color Temperature: 5600 K (daylight)
-
Beam Angle: 6° (spot) – 62° (flood)
-
Lens Diameter: 480 mm Fresnel lens
-
Power Requirements:
-
18 kW mode: ~180–200 A @ 120 V / ~90–100 A @ 230 V
-
12 kW mode: ~120–130 A @ 120 V / ~60–65 A @ 230 V
(requires electronic ballast, typically 12/18 kW flicker-free)
-
-
Weight: ~86 kg (fixture only)
-
Dimensions (L × W × H): approx. 1050 × 870 × 1180 mm
-
Mounting: Spigot 28 mm (1 1/8" Junior Pin)
-
Cooling: Passive, with heat-resistant housing and ventilation
-
Safety: Safety bond attachment point, overheat protection, UV safety glass
Arri Daylight - 18/12 Fresnel
The ARRI 18/12 Fresnel is a high-output daylight fixture designed for large-scale productions. Switchable between 18,000 W and 12,000 W, it delivers powerful, natural 5600 K light with precise beam control from a tight spot to a wide flood. Ideal for simulating sunlight, punching through windows, or lighting wide areas on set. Rugged ARRI construction ensures reliability in demanding conditions.
-
Lamp Type: 18,000 W or 12,000 W single-ended HMI (switchable)
-
Color Temperature: 5600 K (daylight)
-
Beam Angle: 6° (spot) – 62° (flood)
-
Lens Diameter: 480 mm Fresnel lens
-
Power Requirements:
-
18 kW mode: ~180–200 A @ 120 V / ~90–100 A @ 230 V
-
12 kW mode: ~120–130 A @ 120 V / ~60–65 A @ 230 V
(requires electronic ballast, typically 12/18 kW flicker-free)
-
-
Weight: ~86 kg (fixture only)
-
Dimensions (L × W × H): approx. 1050 × 870 × 1180 mm
-
Mounting: Spigot 28 mm (1 1/8" Junior Pin)
-
Cooling: Passive, with heat-resistant housing and ventilation
-
Safety: Safety bond attachment point, overheat protection, UV safety glass
Included in the box
Runtime will be charged per hour separately according to consumption, 35€/hour.
