The Ruby 7 is a powerful tungsten PAR fixture designed for concerts, theatre, and film. Featuring seven individual reflectors in a single housing, it delivers exceptional punch and flexibility, with interchangeable lenses that allow a wide range of beam spreads. Its rugged build makes it ideal for demanding professional applications where high output and creative beam shaping are required.
-
Lamp Type: 7 × 1,000 W tungsten PAR 64 lamps (total 7,000 W)
-
Color Temperature: 3200 K
-
Reflectors: 7 individual parabolic reflectors
-
Beam Control: Interchangeable lenses (VNSP, NSP, MFL, WFL)
-
Power Requirements: 230 V AC, ~32 A (depending on wiring)
-
Weight: ~24 kg
-
Dimensions (L × W × H): approx. 720 × 600 × 350 mm
-
Cooling: Passive (vented housing)
-
Mounting: Standard yoke with 28 mm (1 1/8") spigot / junior pin
-
Applications: High-output wash, audience blinders, effects lighting

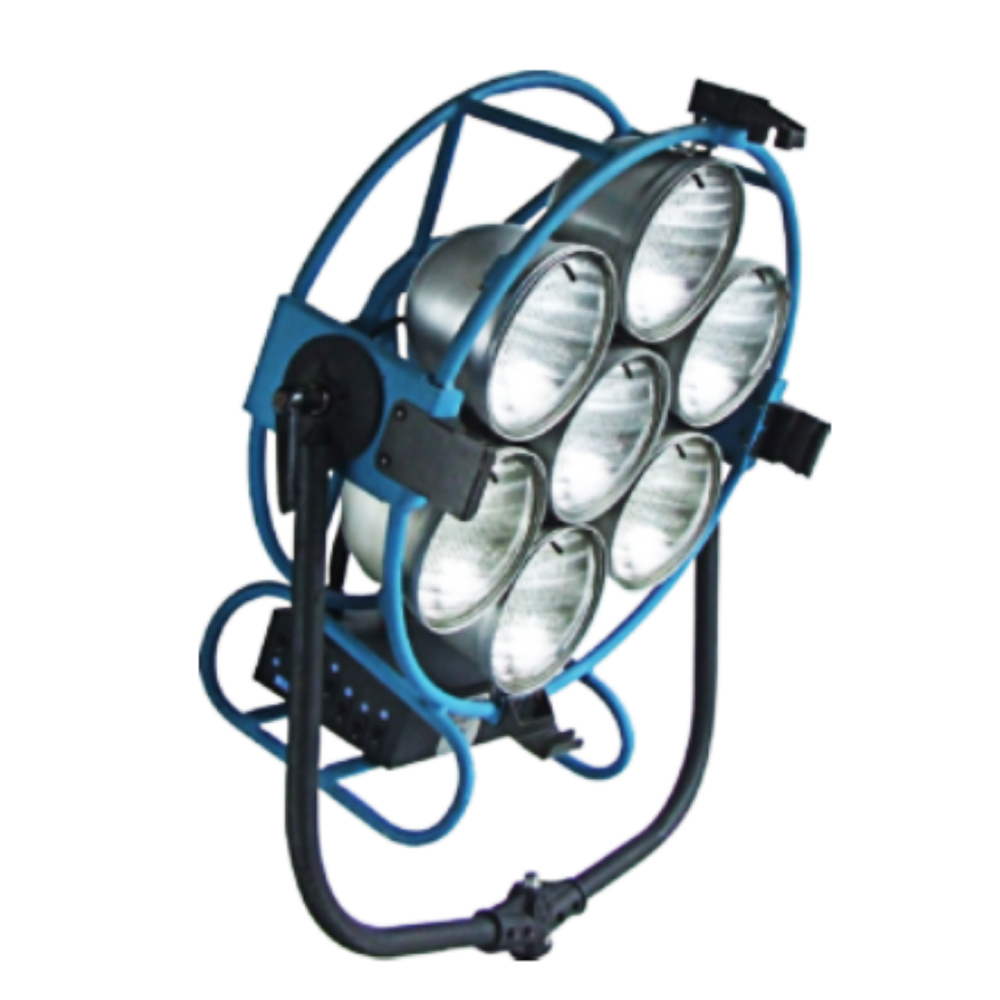

Tungsten PAR - Ruby 7
The Ruby 7 is a powerful tungsten PAR fixture designed for concerts, theatre, and film. Featuring seven individual reflectors in a single housing, it delivers exceptional punch and flexibility, with interchangeable lenses that allow a wide range of beam spreads. Its rugged build makes it ideal for demanding professional applications where high output and creative beam shaping are required.
-
Lamp Type: 7 × 1,000 W tungsten PAR 64 lamps (total 7,000 W)
-
Color Temperature: 3200 K
-
Reflectors: 7 individual parabolic reflectors
-
Beam Control: Interchangeable lenses (VNSP, NSP, MFL, WFL)
-
Power Requirements: 230 V AC, ~32 A (depending on wiring)
-
Weight: ~24 kg
-
Dimensions (L × W × H): approx. 720 × 600 × 350 mm
-
Cooling: Passive (vented housing)
-
Mounting: Standard yoke with 28 mm (1 1/8") spigot / junior pin
-
Applications: High-output wash, audience blinders, effects lighting
